Collect for Stripe guide

Connecting

Standard Login (Connecting your Stripe Account)

Note: You must have administrator level access to a Stripe account in order to connect it. This is Stripe's security policy.

Connect with Stripe

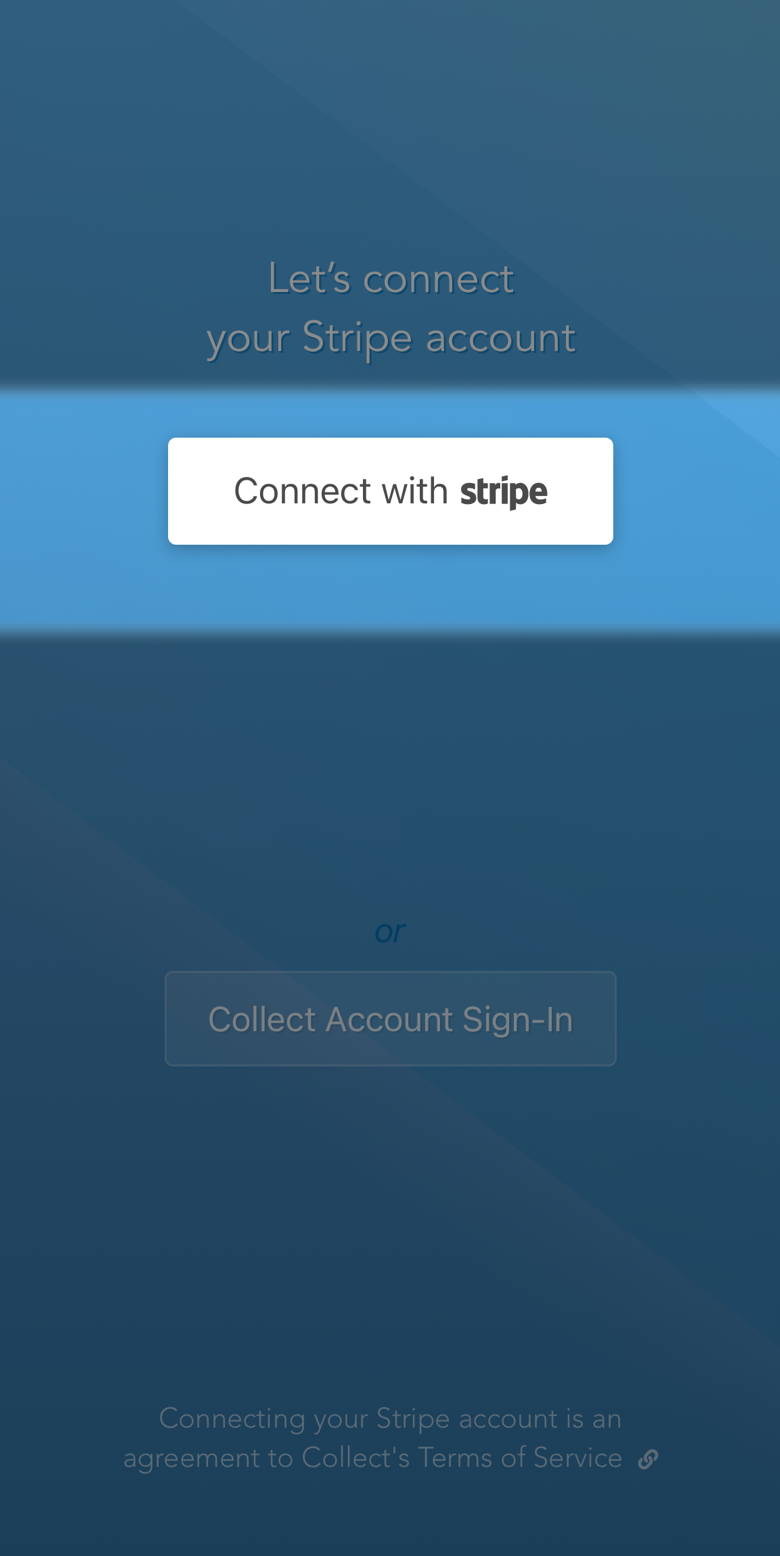

When you start the app for the first time, you'll see the Connect screen.

Tap the 'Connect with Stripe' button to connect your Stripe account, and you'll be sent to Stripe's login page.

Enter your Stripe credentials as you usually do, and press the blue button to sign in. At this point, if your account has never connected to Collect for Stripe, you will be sent back to what looks like the same screen, but now the blue button says "Connect my Stripe Account."

Tap this button to finish connecting to Collect for Stripe. You will be sent back to Collect and you're now ready to start using Collect for Stripe!

Direct Login

If you (or your administrator) have already connected your Stripe account to Collect for Stripe, you can now create Collect users to streamline the sign-in process.

Most importantly, Direct Login frees you from having to share you credentials or make everybody an administrator.

If you are the admin, Create your account here to see what we mean and get started.

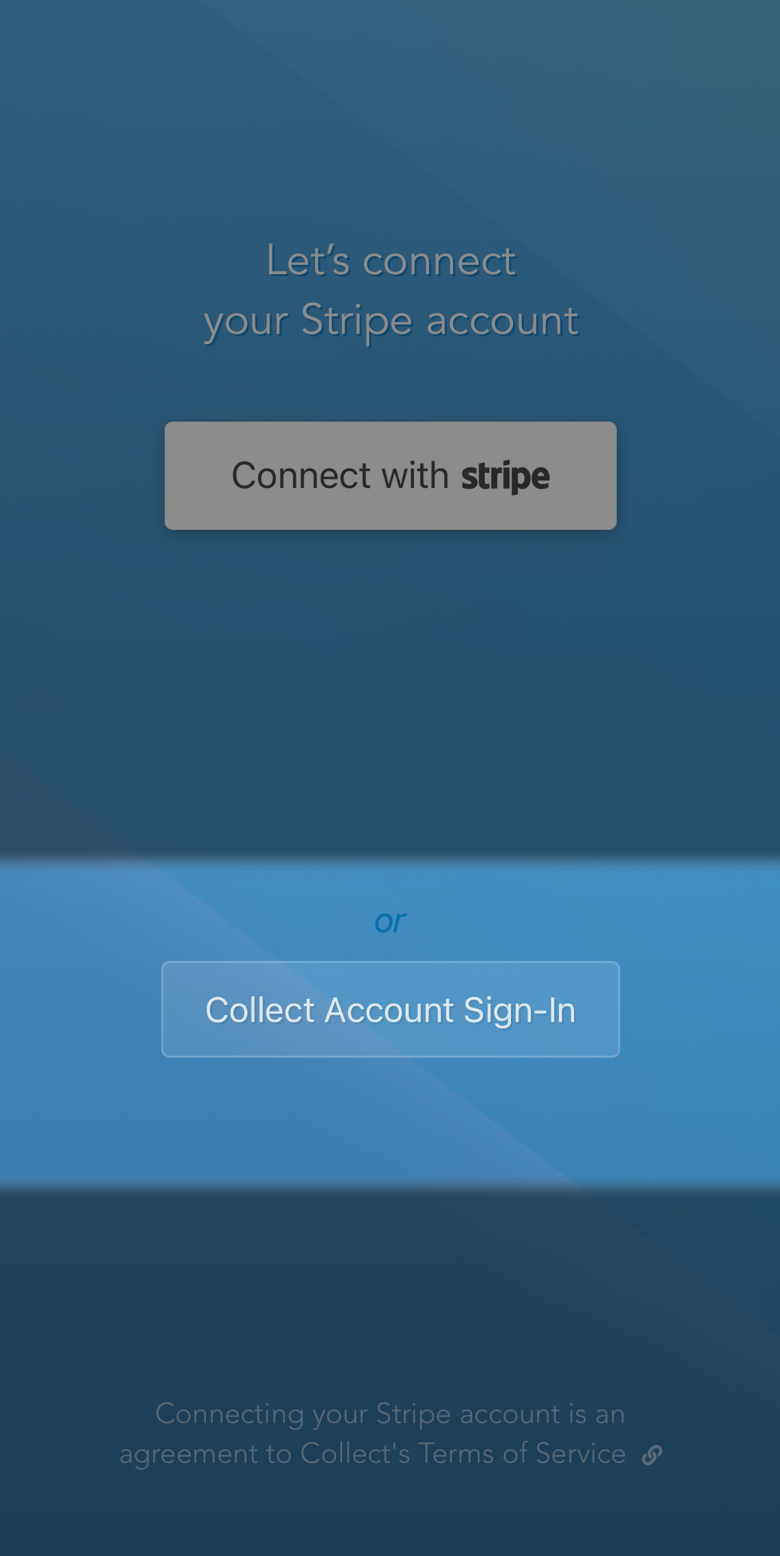

After you have created users and they've set passwords, users will load the Collect for Stripe application and tap Login Directly.

Direct Login 1
Direct Login 2

You and your users can sign in without going through the Stripe Connect process again – just a quick email address and password.

Creating Your First Charge

You’ve just connected your account and/or received readers. Congratulations! Now it’s time to start processing charges to your Stripe account.

In this transaction screen, you can beginning typing the amount of the charge and add a description for this specific transaction by tapping on ‘Add Description.’

Then just use the number pad to set your transaction amount, and the ‘Continue’ button will appear. Tap to continue this charge and begin the credit card entry process. You should also go ahead and plug your card reader into the audio jack, if you have it.

Create Charge 1
Create Charge 2
Create Charge 3

On this screen, you or your customer can add a tip amount with the tap of a button. (For charges less than $10, options will be $1, $2 or $3). Set a tip and then dip, swipe or type in your card.

Now you're on the third screen, and ready to confirm payment! You or a customer can press 'Confirm' to process.

After payment, the customer is taken to the Thank You screen with an option to email a receipt or say "No Thanks."

Create Charge 5
Create Charge 6

Tip: Quickly add saved items to a charge, automatically calculating price and adding to the description! Check out Inventory Mode.

Customers

Notes:
– For customer charges, receipts are automatically sent from Stripe if you have receipts enabled in your Stripe settings.

Create a customer

Rather than simply make a single charge, you can use a credit card to create a customer. That means any time in the future, you can come back to this customer and create charges (as long as the card remains valid) without gathering more information or exposing card numbers again.

To begin, go to Customers from the home screen. Just tap + Create Customer the top of the screen.

Swipe a credit card to apply to this customer, or type the number via 'Input Manually.' You can also skip this for now and create a customer without a credit card, then easily add one later.

Create Customer 1
Create Customer 2

In the last step, add as much or as little contact information as you want. Here you can also apply subscriptions to this customer as you create it (if you attached a credit card).

Create Customer 3
Charge a customer

Navigate to the customer you want to charge from your Customers list. Scroll to the bottom of this customer detail page and tap 'Charge Customer.' This will create a charge using this customer's previously saved credit card information.

Customer Detail View
Charge Customer 1
Charge Customer 2

You will notice the same intuitive flow, but with a customer name onscreen along the way to let you know you're charging an existing customer.

Subscribe a customer

Note: You must have subscription plans added to your Stripe account. Do this in your Stripe Dashboard under 'Billing' → 'Products.'

Navigate to the customer you want to charge from your Customers list. Scroll to the bottom of this customer detail page. If Plans exist in your account, you may select one from the list and then just tap 'Apply Subscription.'

After it is applied, the Subscriptions list for this customer will reload, displaying the new subscripiton you've just applied.

Subscribe Customer 1
Subscribe Customer 2

Instant Subscriptions
As of version 1.8.0  you can subscribe a customer right from the home screen. Just go to Inventory Mode, select your subscription, and Continue.

Instant Subscribe 1
Instant Subscribe 2
Instant Subscribe 3

You'll be able to create a new customer to subscribe immediately on the next screen, or apply this subscription to an existing customer.

Settings

Get to this section by clicking the menu icon or your business' logo on the home (tranasction) screen.

Notes:
– When creating customers, your active currency setting will apply to that customer.
– EMV is only available if charging USD (U.S. Dollars).

Tipping

This section simply tells you whether tipping is enabled (it is enabled by default). You can tap the button on the right side to disable or re-enable tipping.

Tax

Here, you can set a tax percentage, which will be automatically calculated and added to all charges.
*As of version 1.8.4, we automatically add your tax to subscriptions.

Currency

Set a currency for your charges.

As of version 1.8.5 (early 2018) currency is completely open, meaning we support any currency accepted by Stripe for keyed-entry payments. Just tap the currency code on the right side and enter any new 3-digit currency code. The current setting will display in your main menu.

* Charges created using a card reader (swiping) are always USD-only.

Terminal Name

Setting a value here allows you to name each of your POS devices.

Say you have two tablets at the front counter and one in the back – Name each of those under this setting, and a terminal-name value will be added to every charge's metadata in Stripe.

Theme Color

Collect Theme Color Selection Results

What it means

Setting a Theme Color sets all button and highlight colors in Collect for Stripe to your selected color, creating a white label effect throughout.

Learn how to set your color below.

Setting Your Color


On either platform, navigate to Settings. To set a theme, tap the color block on the right side of the Theme Color section to open the color picker.

Use the 'clear' button to reset to Collect for Stripe's original branding and colors.

iOS
Collect Theme Color Selection iOS
Android
Collect Theme Color Selection Android
Results
Android
Collect Theme Android Main Menu
Collect Theme Android Reader Screen
Collect Theme Android Confirm Screen
iOS
Collect Theme iOS Main Menu
Collect Theme iOS Transaction Detail Screen
Collect Theme iOS Confirm Screen
Adding Your Logo

Logos in the main menu (and on the Thank You screen) are imported via your Stripe settings. In your Stripe Dashboard, go to Business Settings → Branding and upload your icon or logo.

from StripeUpload a logo in Stripe


Your logo will become the main menu button in Collect. Upon opening the menu, your business' Display Name (also set in Stripe) will display at the top.

This image will also be shown to customers on the 'Thank You' screen after a successful charge.

Inventory

Inventory is your list of items with preset values and descriptions. It's used to quickly and conveniently add items to a transaction.

Note: Inventory Mode in Collect for Stripe is not intended to track the number of items available for sale.

On the home screen, switching to Inventory Mode will bring up your list of items. This way you can easily create charges without caluclating and typing in the total amount, or typing in a description each time.

Get to the Edit Inventory page either from Settings, or with the 'Manage Inventory' button at the bottom of your Inventory list.

Inventory Items are based on Stripe account and synced across devices. If you sign in with an account that has previously added inventory items, those will be automatically downloaded to the new device. Removing items applies everywhere as well.

Collect for Stripe Web Dashboard

Your Collect for Stripe account allows you to create account users (as noted in Connecting) and sign in to Collect directly.

We have added the following features to this dashboard as well. Be sure to check back here for updates as we continue to build on this.

Create Your Account | Sign In

Web Payment FormsBETA

Creating A Form

In the Forms section of the dashboard, you will find a very simple form builder to create your payment form.

This form will then be embeddable in any https-secured website using the generated code and is totally mobile-friendly.


Under 'New Form,' the Form Name and Amount fields are required. Everything else is up to you, and you can use Show Preview to open the in-progress form in Test Mode.

Description is limited to 30 characters and provides a bit more detail to customers.

The Image field is a link to an online image (the logo on your website) to show at the top of the form. We recommend providing this.

Button Text and Button Color refer to the generated button that will appear on your website wherever the script tag is placed. This button opens the payment form.


CFS New Web Payment Forms

Other options include:

  • – Automatically opening the form whenever somebody opens the page on which it is hosted (the user does not have to click the generated button).
  • – The ability for customers to allow your form if they wish to securely remember them for later. With this option enabled, customers can still say 'no' and not allow the form to remember them.
  • – Billing Address fields and/or Shipping Address fields
Result
CFS Generated Web Payment Form

Forms are automatically built, generated and drawn based on the information provided. They are cross-tested to be compatible on any browser, on any device, on any website.

Requires JavaScript

Using Your Forms

Your new forms will appear in a list on the right side of the Forms page in your dashboard.

From here you can easily toggle Test Mode to test your form and go live when you are ready.

CFS Web Payment Forms

As an extra step in your preparation, clicking the name of the form will open the form in a new tab. The form will reflect whether you are in Test Mode (if not, the form will be live). This is also a good way to see how your pay button will look, and to test your 'Open on page load' functionality.

Adding to your website

The generated line of code that places the form on your website is available by clicking the code icon under 'Embed'.

CFS Web Embed Payment Form

Click 'Copy to Clipboard' to copy quickly

Just paste this code right into your payment page, specifically where you would like the button to appear.

Example

Your pay button will appear wherever you place your script tag, so you can treat this copied code almost as the button itself.

This button will inherit properties like alignment, margins, font and font size from your own website style.

You can add to or override CSS styling if needed using the .cfsPayButton class, but this is not required.

CFS Web Payment Form – Demo Site

We encourage you to reach out with questions, suggestions and other comments as we build out the Web Dashboard.


more to come
